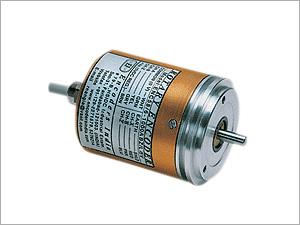

Rotary Encoders

Rotary Encoders
Rotary Encoders
Product Code : E-01
Product Description

With the help of our dexterous professionals, we are engaged in providing fine quality Rotary Encoders that are used to encode electrical and mechanical data. These encoders are manufactured by inculcating advanced techniques and supreme grade components under the stern supervision of our team of technical experts. Further, the Rotary Encoders are checked on various quality parameters by our team of analysts. Clients can avail these encoders from us in different technical specifications at affordable prices.

Features:

  • Easy installation

  • Durable finish standards

  • Negligible maintenance

  • Longer service life

Uses:

Printing, Packaging, Metal Processing, Textile and Machine Tool

SUPPLY VOLTAGE 5 V DC or 5-24 V DC
SUPPLY CURRENT 50 to 70 MA (quiescent)
OUTPUT PULSES Up to 2500 PPR
OUTPUT PULSE AMPLITUDE Same as supply voltage
OUTPUT CHANNELS (A) Single channel square pulses.
(A B) Two channel 90 deg. phase shifted square pulses.
(A B Z) Two channel 90 deg. phase shifted square pulses with a marker pulse/revolution.
(ABZ/L) Same as above with differential line driver output (Six-channel)
OUTPUT CABLE LENGTH 0.5 meter (Standard)
OUTPUT FREQUENCY 25 KHz Max. (Upto 512 PPR), 6000 R.P.M. (Max.) 100KHz (Max.) (from 513-2500 PPR).
MECHANICAL BODY Machined Aluminium body in anodised finish.
SHAFT Stainless steel (SS-304) of 6/10 mm. dia., 12/22 mm long.
PROTECTION CLASS Weather proof as per IP-64
OUTPUT O/P Rating Sink Source
Standard 5 V DC(TTL) or 5-24 V DC 20 mA 20 mA
Differential Line Driver 5V DC(TTL) or 5-24V DC
20 mA 20mA
