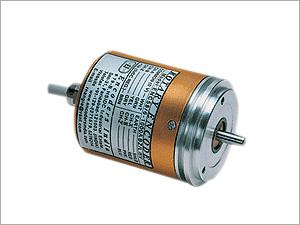

Electronic Tacho Generator

Electronic Tacho Generator
Electronic Tacho Generator
Product Code : E-04
Product Description

Electronic Tacho Generator

It generates 0-10V DC analog signal (factory set) proportional to the rpm of the Tacho-generator shaft. 10V output can be given at the maximum specified rpm which can be from 5 rpm to 6000 rpm. Alternatively a current signal of 4-20 mA or 0-20 mA can also be provided instead of voltage output.

Output
O/P Pulses Up to 1024 PPR (Optional)
Mounting Servo/Face Mounting by 3 screws of M-4, 120 degree apart on a PCD of 42mm dia.
Dimensions Body Dia.=58 mm, Depth=67mm (Excluding Shaft & cable gland)
SUPPLY VOLTAGE 24V DC (±20%) ripple free
OUTPUT 0-10 V DC, 4-20 mA, 0-20 mA (proportional to shaft rpm)
OUTPUT PULSES  Single channel (optional)
120 PPR (standard)
OUTPUT LINEARITY ± 0.3%
OUTPUT CURRENT 50 mA max. at full output.
OUTPUT LOAD (max.) 200 Ohm
OUTPUT CABLE LENGTH 1 meter (Standard)
MECHANICAL BODY Machined Aluminium body in anodised finish.
SHAFT Stainless steel (SS-304) of 6 mm. dia., 12 mm long.
PROTECTION CLASS Weather proof as per IP-64
